Name: 50Hz Manual CT PT Test Equipment With Burden Box Collection
Brand: HNMC
Price: 1 USD

Brand Name : HNMC

Model Number : FY series

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 sets per month

Delivery Time : 30-45 days

Packaging Details : Wooden Package

Operation mode : Manual

Rated current : 1A, 5A

Rated voltage : 110V, 100V, 110V/√3V, 100V/√3V

Operation ragne : 20-120%Vn, 1-120%In

Rated frequency : 50 or 60HZ

Power factor : 0.8, 1.0

Contact Now

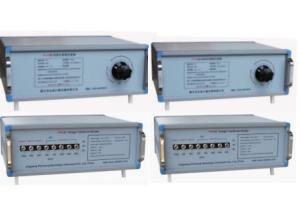

Accuracy Class 3 CT PT burden box collection

FY47 CT Burden

Technical Parameters

Rated Current:	1A
Power Factor and Rated Burden:	COSΦ=0.8:0.625,1.25,2.5,3.75,5,6.25,7.5,10,12.5,15,20,25,30,40,50,60VA COSΦ=1.0: 0.625,1.25,2.5,3.75,5VA
Accuracy Class:	±3%
Operation Range:	(1%-120%). In
Test Cable Resistance:	0.06Ω
Frequency:	50Hz or 60HZ
Operation Model:	By Manual
Withstand Voltage:	2kV/1min
Insulation:	Air

FY49 CT Burden

Technical Parameters

Rated Current:	5A
Power Factor and Rated Burden:	COSΦ=0.8: 2.5,3.75,5,6.25,7.5,10,12.5,15,20,25,30,40,50,60 VA COSΦ=1.0: 2.5,3.75,5,6.25, 7.5, l0VA
Accuracy Class:	±3%
Operation Range:	(1%-120%). In
Test Cable Resistance:	0.06Ω
Frequency:	50Hz or 60HZ
Operation Model:	By Manual
Withstand Voltage:	2kV/1min
Insulation:	Air

FY95 PT Burden

Technical Parameters

FY95 PT burden

Technical Parameters
